EC-470 Zero Calibration Auto Spin Screen Paint Thickness Tester Metal Surfaces Meter Non-Conductive Non-destructive Coating Thickness Gauge

EC-470 Zero Calibration Auto Spin Screen Paint Thickness Tester Metal Surfaces Meter Non-Conductive Non-destructive Coating Thickness Gauge
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Informazioni di base
Termini di pagamento e spedizione
Descrizione di prodotto

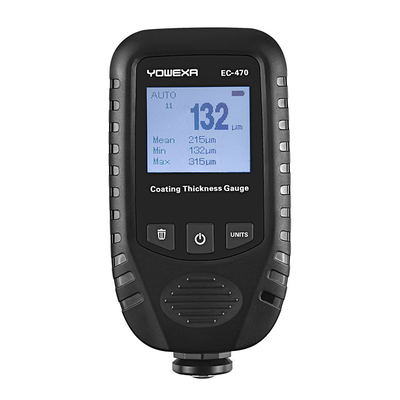

EC-470 Automatic Rotating Screen Paint Coating Thickness Gauge

Specifications
Model EC-470
Measuring principle Fe: magnetic induction; NFe: eddy current effect
Measuring range 0~2000μm
Precision ±(3%+1μm)
Resolution 0.1μm(0~100μm); 1μm(>100μm)
calibration Zero calibration
unit μm, mm, mil
Minimum radius of curvature of substrate Convex surface 5mm; concave surface 25mm
Minimum measurement area 15mm in diameter
Minimum substrate thickness Fe: 0.30mm; NFe: 0.05mm
Maximum measuring speed 2 readings/sec
display Dot matrix LCD screen with backlight
Operating environment Temperature: -10℃~50℃; Humidity: 20%RH~90%RH (non-condensing)
Storage environment Temperature: -20℃~60℃; Humidity: 20%RH~90%RH (non-condensing)
power supply 2 AAA 1.5V alkaline batteries/1.2V rechargeable batteries
Protection level IP40
Dimensions 102*53.6*25mm
shell material ABS
weight About 80g (without batteries)

Product Description

EC-470 has a streamlined display interface with automatic rotating screen function.

FEATURES:
Ruby probe
Statistic analysis of data
Users calibration supported
Auto-rotate screen
Display with backlight
Power off automatically
Battery protection
