Casa /Prodotti/Misuratore di profondità ad ultrasuoni/Ultrasonic Liquid Level Meter Depth ABS Level Sensor Tank Liquid Ultrasonic Level Gauge

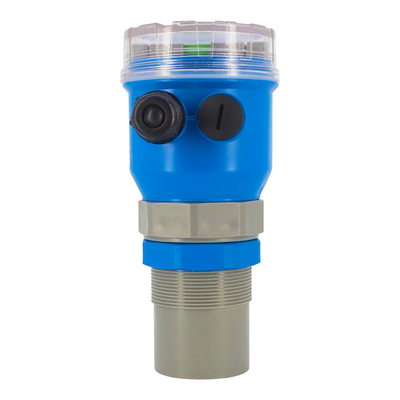

Ultrasonic Liquid Level Meter Depth ABS Level Sensor Tank Liquid Ultrasonic Level Gauge

1 Set
MOQ
$142.80(1 - 9 Sets) $135.00(10 - 49 Sets) $127.00(50 - 99 Sets) $119.00(>=100 Sets)
prezzo
Ultrasonic Liquid Level Meter Depth ABS Level Sensor Tank Liquid Ultrasonic Level Gauge
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Grade: Industrial
Warranty: 1 year
Customized support: OEM
Model Number: SZY-102
Material: ABS
Measuring range: 0-20m(for customized)
Blind zone: 0.3-0.5m
Error: ±0.3%F.S
Display: OLED
Display resolution: 1mm
Keyboard: three light patch keys
Working frequency: 20-350KHz
Power supply: DC18-28V
Power consumption: 0.6W
Informazioni di base
Model Number: SZY-102
Termini di pagamento e spedizione
Packaging Details: carton
Supply Ability: 500 Set/Sets per Month
Descrizione di prodotto
Product Description
Product number
SAC-102
Measurement range
0~20m
Measurement blind spot
0.4m
Measurement accuracy
0.3%
Resolution
1mm
Working frequency
20~350KHz (specification varies)
Output signal
Two-wire 4~20mA (with HART)
3/4 wire 4~20mA 1~5V, RS485
Display method
OLED Chinese and English menu (with light)
Installation method
Thread (M60*2) can be customized flange
Working environment
Meter -20~60℃; Probe -20~80℃ (customized 120℃)
Protection class
Display instrument IP65; probe IP68
Powered by
18~24VDC (two-wire system)
11~24VDC (three/four wire system)
Can be customized AC85~400V
Company Profile
Jiangsu Aice Instrument Technology Co., Ltd. has been committed to providing comprehensive services for industrial automation
control.
It is a comprehensive company specializing in the design, development, production and sales of digital display instrument,
transmitter and recorder.
FAQ
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the
Middle East and Asia. Certificates are international ones.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
